Date: 2006-01-06


I spent Friday afternoon making myself a Saxon/Wheel stand. It's been a bit of a while since I made spinning devices, I've been concentrating on rockets for over 6 months. Time to go back to smelling that kind of smoke!

To test my new stand a simple reversing 1/4" driver saxon was chosen. Pyrotube 1/4"x2" cases where charged with compositions I had a small quantity of in the magazine; RP and Fe Driver. The drivers were hot-melt glued and redundantly masking taped to a tounge depressor. Interdriver matching was implemented using a length of blackmatch and some masking tape to make the piping. Blackmatch was also used to fuse the Iron driver.

The resulting device being a somewhat ugly hack, I had little confidence in its performance. I was concerned that the interdriver matching wasn't protected from stay sparks well enough, but the piping mechanism was designed to be loose enough to ensure we did not repeat the violent pipe rupture of the last multidriver wheel that almost brought it to grief.


Actually worked pretty well.

The 1/4" drivers aren't much to write home about with the compositions used, but otherwise the device performed as designed.

The Iron was too fine, much like in this previous device, in fact it was the last dregs of that propellant. Sparkler steel would have been more effective, especially in a 1/2" driver.

The RP performed almost exactly as meal + 10% Aluminium did this previous saxon. It is a mysterous effect that I still don't fully understand. RPs Sulfur content is not especially high, but it seems to act a bit like a delayless glitter. After burn-out of the wheel a Senko Hanabi effect was seen to come from a ball of dross at the nozzle of the driver. It was not caught on the video, but it continued for almost a minute.


title type size
Saxon Video video/x-msvideo 7.816 Mbytes

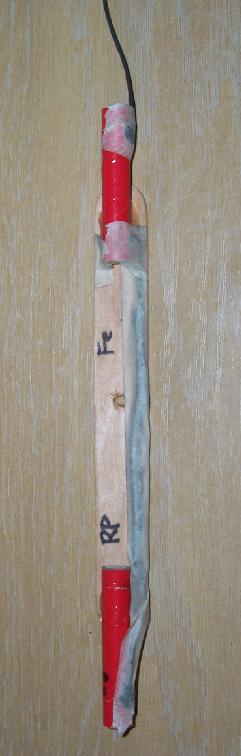

Pre-Test Picture image/jpeg 26.292 kbytes

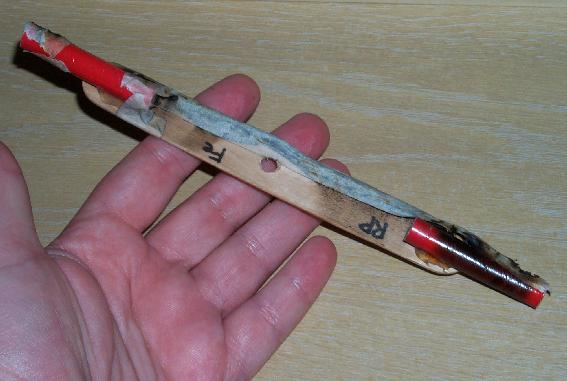

Post-Mortem Picture image/jpeg 31.634 kbytes
Three Frame Loop image/gif 186.682 kbytes
Multiple Frames image/gif 956.390 kbytes
The Final Spurt image/gif 1.068 Mbytes
