A new MW loop

I've since built another MW tuned loop antenna with switchable bands and an attenuator. It also features a coil wound with Litz wire for low-loss, and is gymboled for easy nulling. Its much larger aperture pulls in even stronger signals, and its nulls are tighter than the previous prototype.

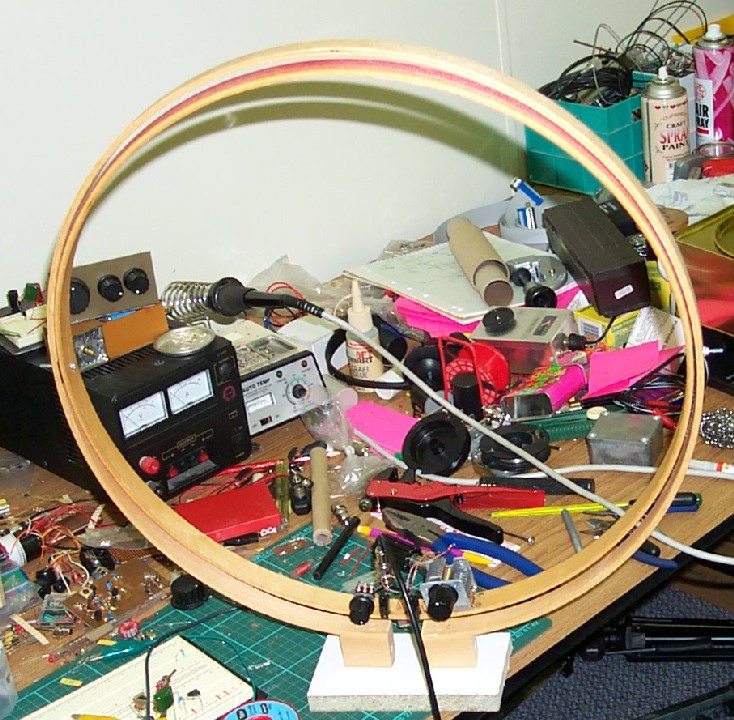

new MW tuned receiving loop

Please excuse the enormous mess!


Parent article: Small Tuned Loop AM Broadcast Antenna.
