Beach Shoot #9 - 19 mm Stinger

attached image

Date: 2003-11-04


Made with the stinger tooling kit from skylighter. 19 mm ID, 64 mm long, propellant of RP, wax treated cat litter nozzle and bulkhead.

The spin vent was fire-proofed with sodium silicate solution.

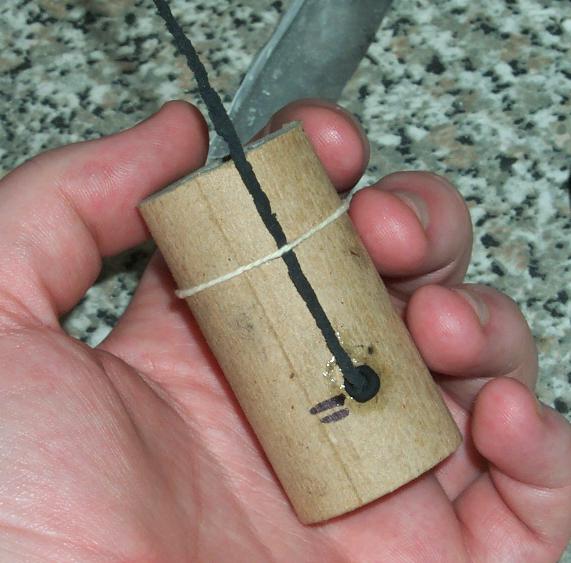

Fused with a piece of Zinc effects blackmatch, glued in place with meal-NC paste. The fused tied with cotton string along the side of the tube for neatness.

Launch pin was a large bamboo kebab stick pushed into the sand at a slight angle to direct the stinger down the beach and out to sea slightly.


Nice Flight.

A very throaty wooosh, a mixture of the spin humming and the doppler shift of the main nozzle output. Some Aluminium effect, some charcoal. Looked great.

It climbed to a respectable height for a stinger style device. We heard it hitting the ground what seemed like a very long time later, but it could not be found in the dark.


title type size
Flight Video video/x-msvideo 529.458 kbytes
Pre-Test Picture image/jpeg 48.800 kbytes
